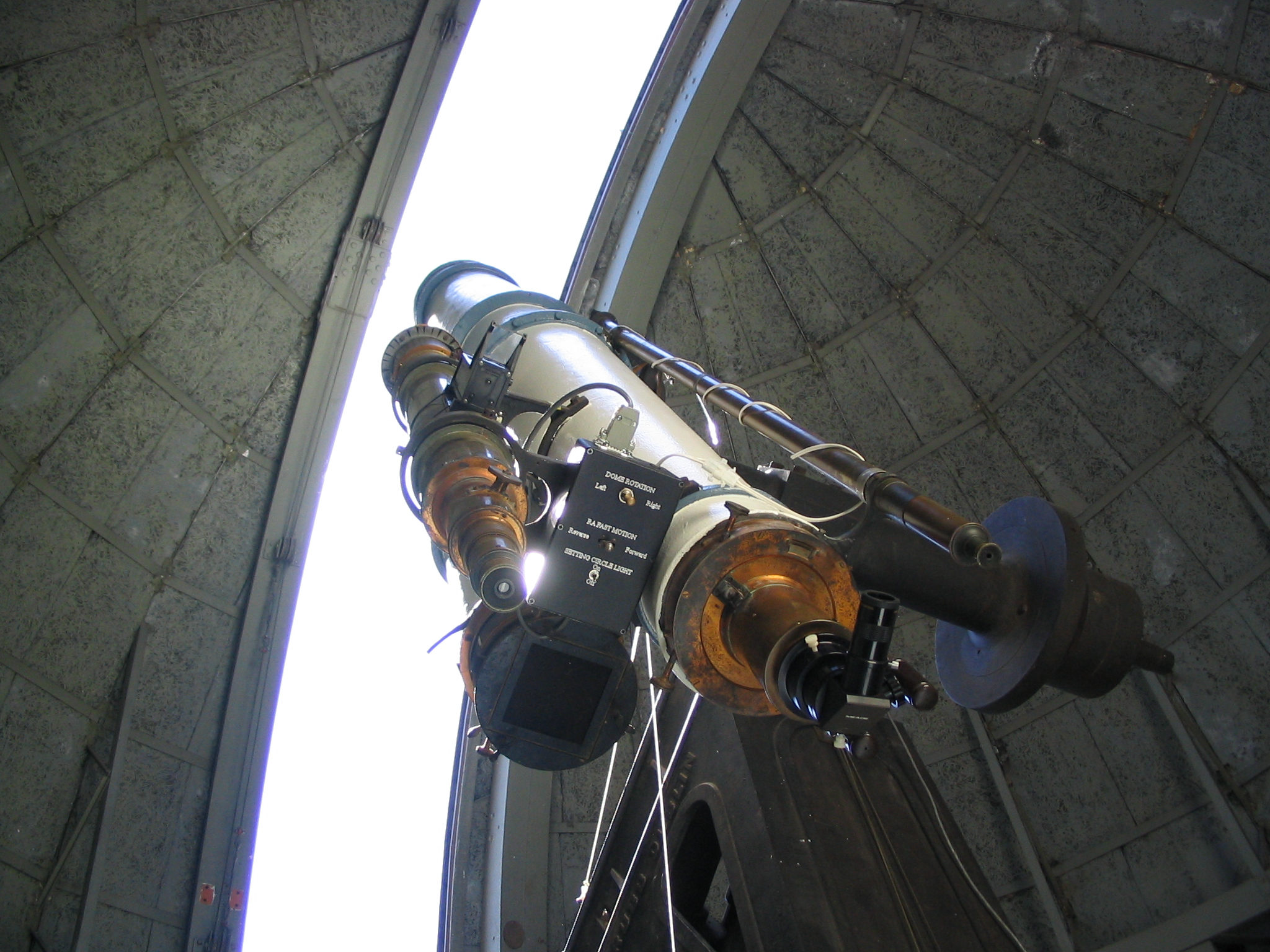

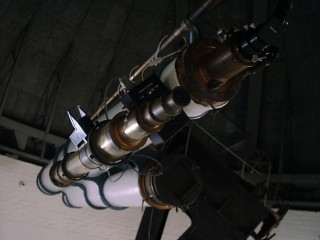

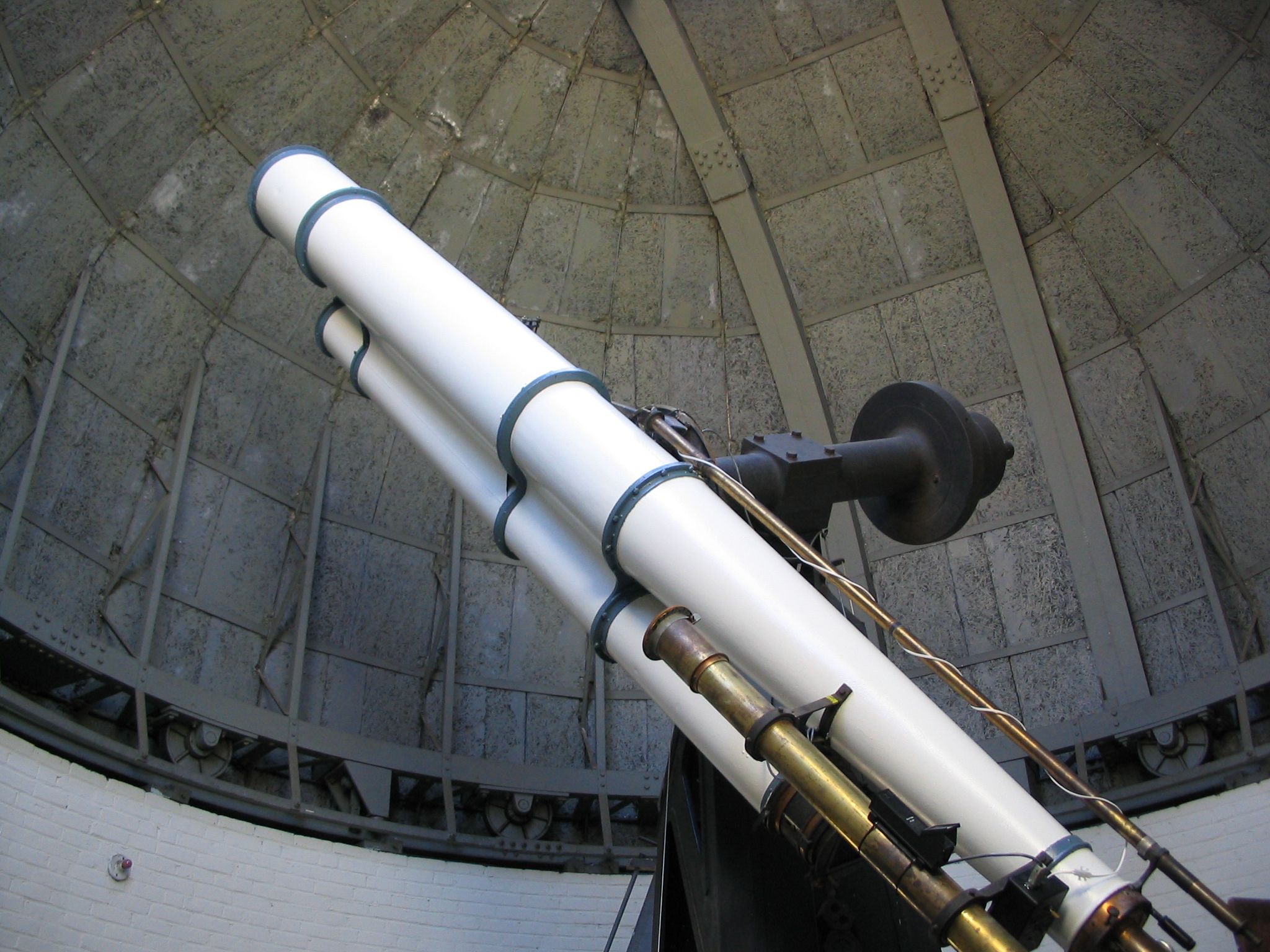

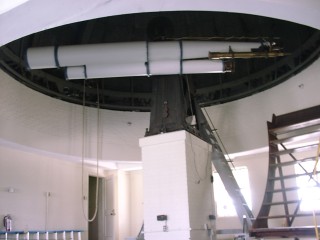

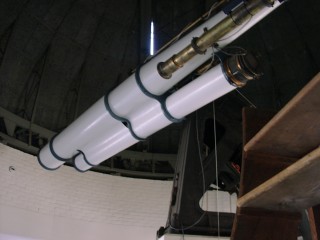

In the larger dome, is a refractor telescope that was purchased from the Sr. Howard Grubb Co. in 1893. It actually consists of 3 co-aligned visual and photographic telescopes; a fifteen-inch f/12 visual telescope, a nine-inch photographic telescope and a four-inch visual telescope.
| Photos of the Grubb Refractor Telescope | |||
|---|---|---|---|
 |
 |
 |
|
 |
 |
 |
 |

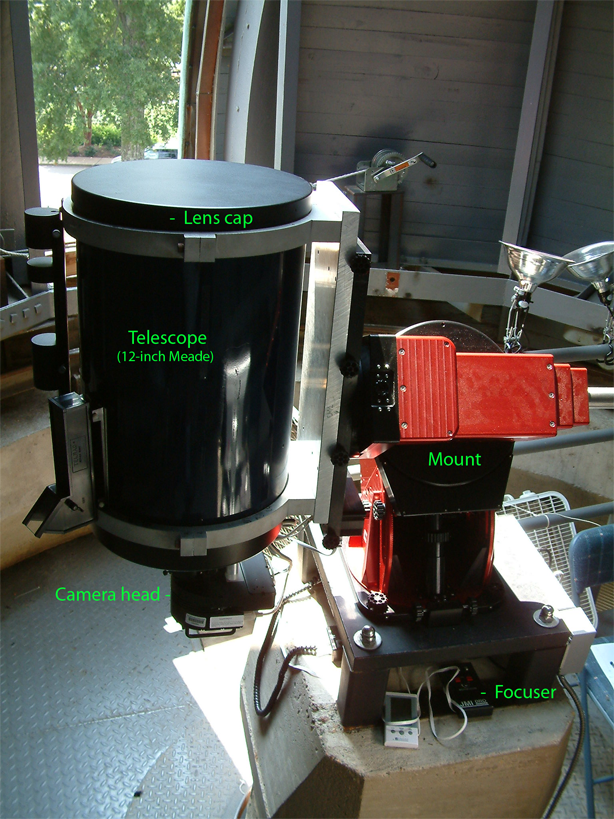

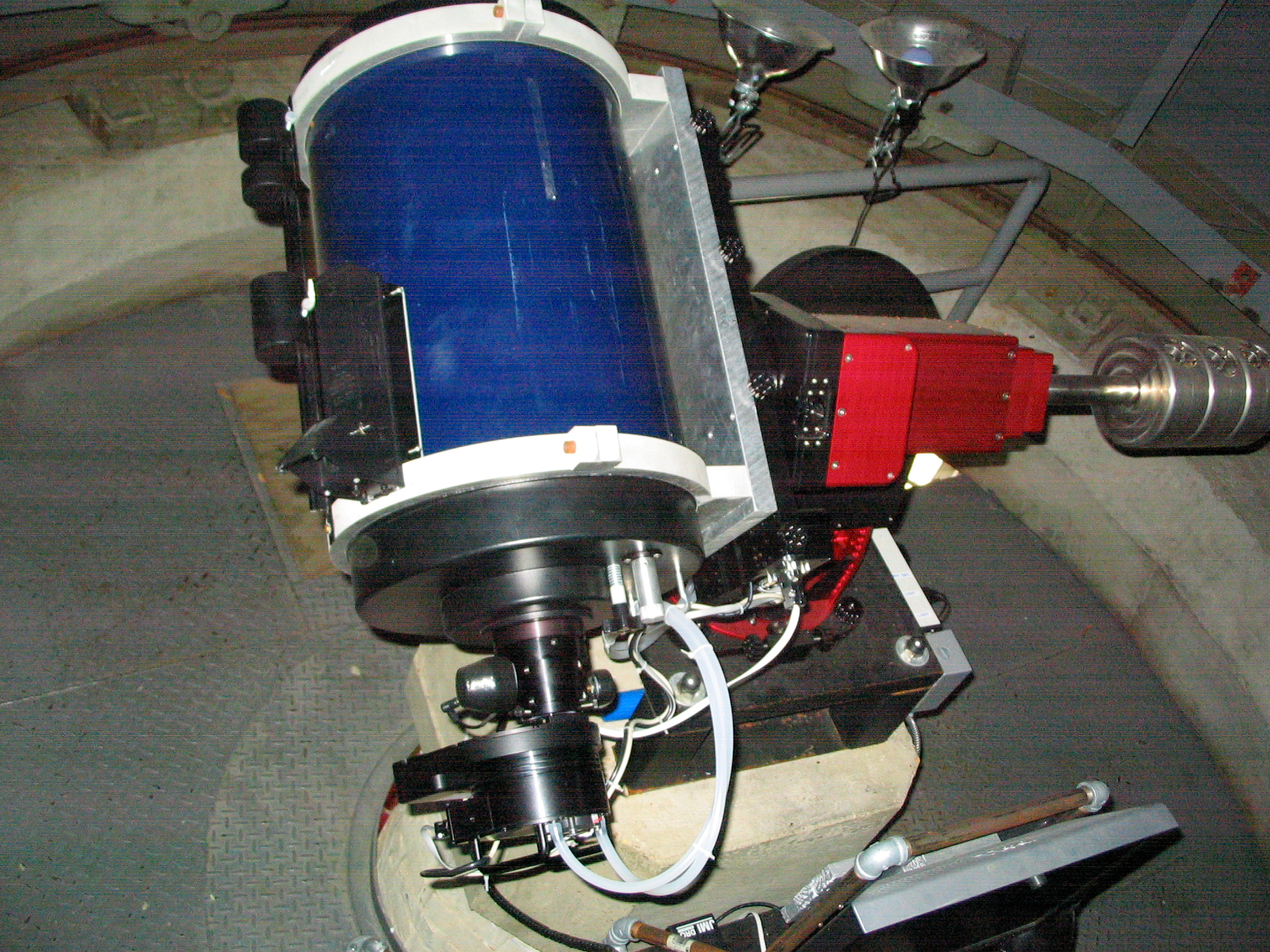

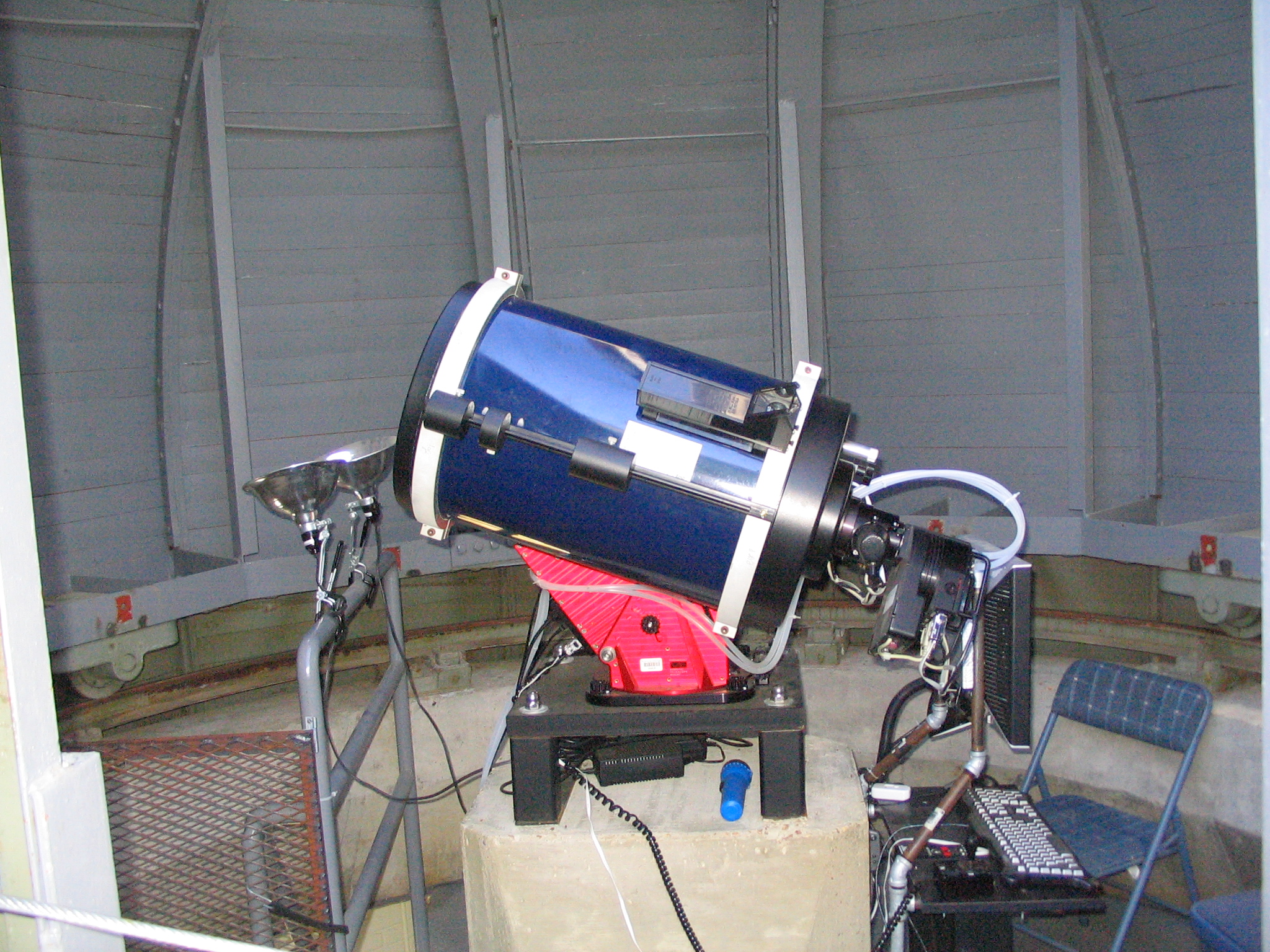

The smaller dome currently houses a twelve-inch f/10 Meade LX200, Schmidt-Cassegrian reflector telescope with an electronic CCD camera, the SBIG ST7 with an AO-7 adaptive optics accessory, attached to it.
| Photos of the Meade with CCD Camera | |
|---|---|
 |
 |
The following telescopes are used in the teaching laboratories:
Diameter |
Focal Length |
Model |
Type |
Notes |
| 25 inch | 125 in (f/5) | Obsession | Dobsonian reflector | |
| 12 inch | 120 in (f/10) | Meade LX200 | Schmidt-Cassegrian reflector | Computer controlled |
| 8 inch | 80 in (f/10) | Meade LX200 | Schmidt-Cassegrian reflector | Computer controlled |
| 8 inch | 80 in (f/10) | Celestron | Schmidt-Cassegrian reflector | |
| 7 inch | 105 in (f/15) | Questar | Maksutov-Cassegrain reflector | |
| 10 inch | 48 in (f/4.8) | Meade Starfinder | Dobsonian reflector | |
| 10 inch | 56 in (f/5.6) | Discovery DHQ | Dobsonian reflector | |
| 70 mm | 480 mm (f/6.8) | TeleVue Pronto | Refractor | Wide Angle |
The five-inch refractor telescope that was originally in the smaller dome of the Kennon Observatory, was made by Murz & Son of Munich. It had been acquired by F. A. P. Barnard in about 1856 and is now a part of the Millington - Barnard Collection on display at the University Museum.
Also Barnard had ordered an 18.5-inch refractor telescope from Alvin Clark & Sons in 1856. In January, 1862, when Alvin Clark was testing the telescope he discovered Sirius B, the "white dwarf" companion of Sirius the "dog star". However, due to the outbreak of the Civil War, it was never delivered to the University of Mississippi.
